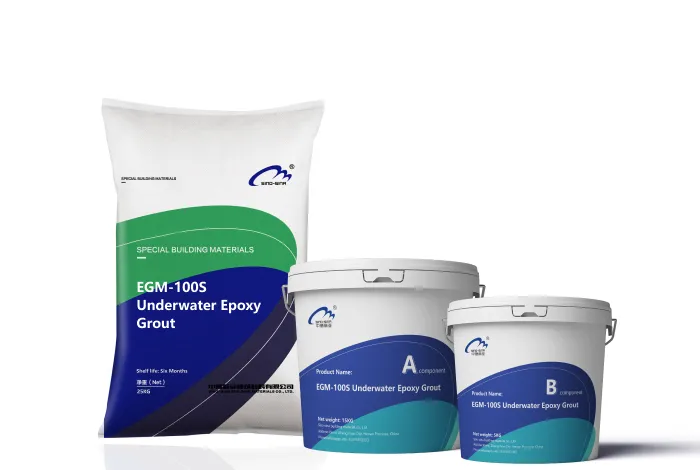

EGM-100S Underwater Epoxy Grout is a self-leveling, high-strength underwater epoxy grout for submerged structural filling, rehabilitation and protection.
Self-leveling and self-compacting underwater placement
High adhesion and dense cured body under water
Strong corrosion resistance for marine and tidal repair
Suitable for pile rehabilitation, pier repair and submerged concrete repair
Product Introduction
EGM-100S Underwater Epoxy Grout is a polymer-based underwater grout designed for structural filling and rehabilitation below the waterline. It is formulated to maintain high adhesion, flow and compactness during underwater placement, helping contractors achieve a dense and stable repair body in submerged or splash-zone conditions.
The grout is suitable for repair and strengthening of damaged piles, pier foundations, wharf structures, bridge substructures and other concrete or steel-supported elements affected by scour, impact, concrete spalling or reinforcement exposure. It is also suitable for jacket-based repair systems where a durable underwater filling medium is required.
Compared with ordinary repair mortars, EGM-100S is intended for situations where underwater placement, chemical resistance and long-term bond performance are all critical.
Product Parameters
| Parameter | Value |
|---|---|
| Product Type | Underwater epoxy grout |
| Placement Behavior | Self-leveling, self-compacting |
| Compressive Strength | ≥ 60 MPa |
| Compressive Elastic Modulus | ≥ 10,000 MPa |
| Adhesive Tensile Strength | ≥ 10 MPa |
| Adhesive Flexural Strength | ≥ 25 MPa |
| Tensile Bond Strength to Concrete | ≥ 2.5 MPa |
| Recommended Service Environment | Underwater / tidal / splash-zone structural repair |
| Reference Standards | GB 50367-2013; JTG/T J22-2008; JTS 311-2011; GB 50728-2011 |
Product Usage
Underwater filling and rehabilitation of damaged piles and pile caps
Jacket-assisted repair of marine, port and bridge substructures
Repair of submerged concrete elements affected by scour, impact or spalling
Filling and protection of underwater repair zones requiring durable bond and dense body formation
New pile protection and structural rehabilitation in marine or tidal environments
