CBGM®-70 is a ready-to-use, cementitious grout engineered for direct underwater application in offshore environments. Its unique formulation:
Instantly displaces water upon contact, ensuring full contact with substrates.
Maintains excellent flowability even in strong currents (tested at 3 m/s).
Develops high early strength (≥30MPa in 3 days) for rapid return to service.
Resists saltwater corrosion and chemical attack in tropical marine conditions.
Long-Term Durability: Achieves 79.3 MPa at 28 days for structural reliability.
Product Introduction
CBGM-70 is a high-strength shrinkage-compensating grout specifically engineered for demanding underwater and marine applications. Its rapid strength gain, reaching up to 23.9 MPa in just one day and 79.3 MPa at 28 days, ensures reliable and durable performance in critical infrastructure projects.
Product Parameters
Guaranteed Technical Data
| Property | Value |
| Flowability (mm) | Initial value: ≥290 mm |
| 30-minute retained value: ≥260 mm | |
| Vertical Expansion Rate (%) | 3-hour value: 0.1~0.8% |
| Difference between 24-hour and 3-hour values: 0.02~0.5% | |
| Compressive Strength (MPa) | 1-day strength: ≥20 MPa |
| 3-day strength: ≥40 MPa | |
| 28-day strength: ≥70 MPa | |
| Permeability Rate | 0 |
| Effect on Steel Bars | No corrosion |
| Anti-dispersion (%) | <1.5% |

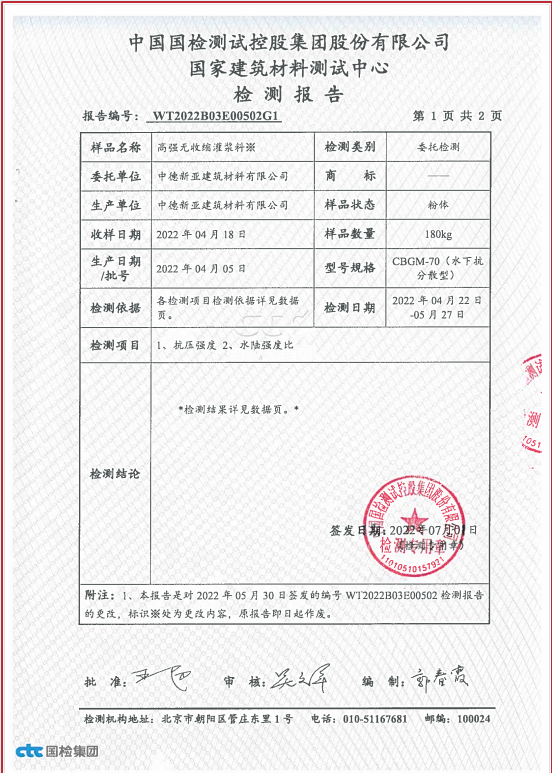

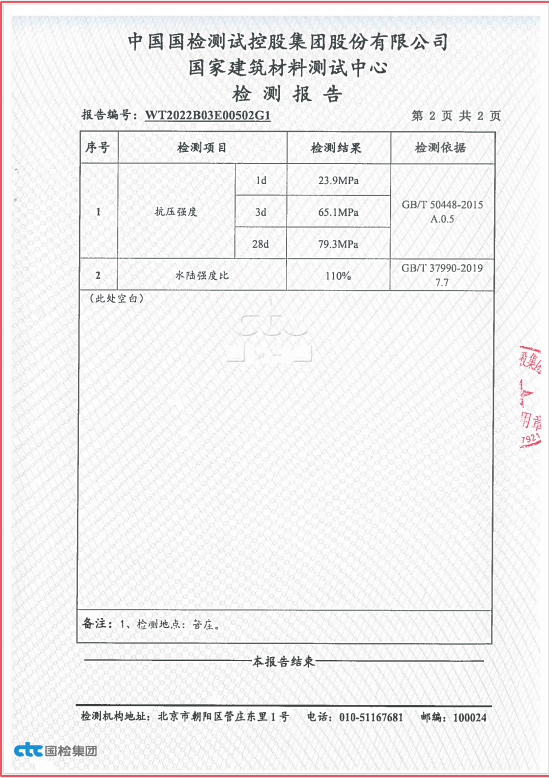

Reference Third-Party Test Results (ONLY AS REFORENCE):
The material demonstrates rapid strength gain, achieving a significant compressive strength of 23.9 MPa within just one day. This indicates its capability to provide early load-bearing capacity, which is crucial for projects requiring quick turnaround times.
By the third day, the compressive strength increases to 65.1 MPa, showcasing excellent early-age performance and reliability.
At 28 days, the ultimate tested strength reaches an impressive 79.3 MPa, highlighting the material’s long-term durability and robustness.
Product Usage

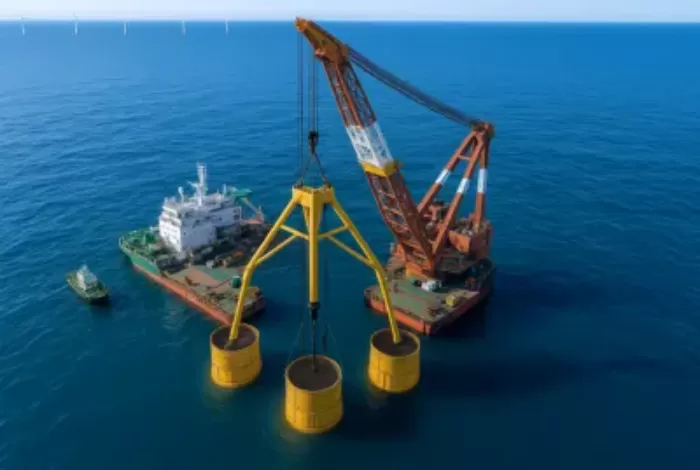

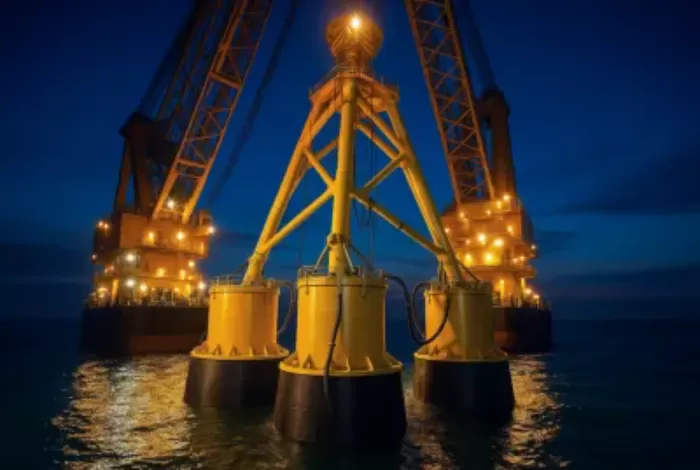

Offshore wind turbine foundations.
Marine infrastructure repairs.
Subsea pipeline installations.
Harbor and port constructions.
Packaged in 25kg waterproof bags.
Store in a dry place away from moisture.
Product Documentation
Related Products
CBGM Marine Anti‑Corrosion Non‑Shrink Grout
A cementitious, shrinkage‑compensated grout designed for coastal and marine infrastructure, where chloride ingress and sulfate attack can shorten service life. Available in multiple grades (CBGM‑1 to CBGM‑4) for different placement and thickness needs.
EGM-100S Underwater Epoxy Grout
EGM-100S is a high-strength underwater epoxy grout developed for submerged structural repair, marine rehabilitation and jacket-based pile restoration. It provides self-leveling flow, dense filling and durable underwater bonding in harsh service conditions.
CBGM Underwater Anti-Washout Injection Grout
CGM Underwater Anti-Washout Injection Grout is a rapid-setting cementitious grout for tunnel waterproofing, underground void filling and wet-condition reinforcement. It offers stable slurry performance, no bleeding and controlled expansion in water-bearing repair zones.
