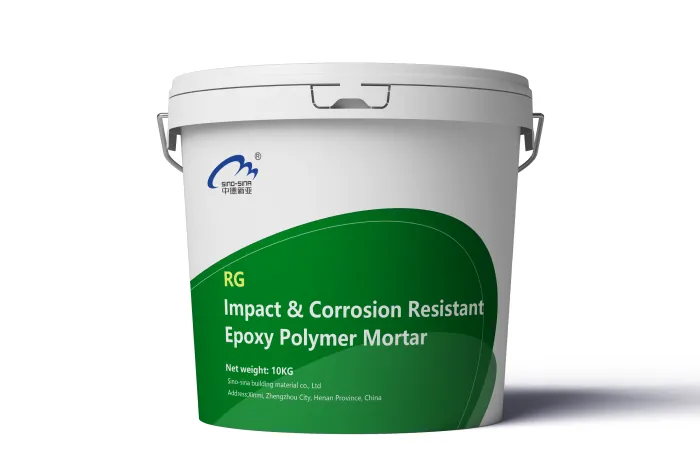

RG Epoxy Polymer Mortar is designed for impact, abrasion and corrosion protection of hydraulic, marine and industrial structures.
Summary Benefits at a Glance
High strength – compressive ≥70 MPa, flexural ≥10 MPa, bond >4.0 MPa.
Resistant to impact, abrasion, cavitation and carbonation.
Excellent durability against acids, alkalis, salts and freeze–thaw cycles.
Long-term corrosion protection, equivalent to >20 years of exposure.
Product Introduction
RG Epoxy Polymer Mortar is a high-performance protective mortar combining epoxy resin, polymer additives and graded aggregates. It forms a dense, durable and corrosion-resistant layer strongly bonded to concrete substrates. The system provides excellent resistance to impact, abrasion, cavitation, carbonation and chemical attack, making it ideal for hydraulic structures, ports, bridges, industrial floors and chemical plants. With superior durability, RG mortar ensures long service life and stable protection in aggressive environments.
Product Parameters
| Test Item | Unit | Requirement |
| Compressive strength | MPa | ≥ 70.0 |
| Tensile strength | MPa | ≥ 10.0 |
| Bonding strength to concrete | MPa | > 4.0 (failure in C50 concrete) |
| Cavitation erosion resistance | h·(g/cm²) | 2.5 (at 40 m/s flow) |
| Impermeability coefficient | MPa·h | 18 (no seepage) |
| Elastic modulus | MPa | 2100 |
| Carbonation depth | mm | 0.8 (≈ 50 years air exposure) |
| Impact resistance | kJ/m² | 2.2 |
| Water absorption | % | ≤ 0.18 |
| Shrinkage | % | ≤ 0.18 |
| Aging resistance | — | Equivalent to >20 years natural exposure |
| Chemical resistance | — | Resistant to 50% NaOH, 50% H2SO4, 10% NaCl |
| Toxicity / VOC | — | Pass (benzene, toluene, xylene, TVOC) |
Product Usage
Hydraulic engineering: spillways, sluices, tunnels, stilling basins
Marine and port works: piers, docks, offshore foundations
Industrial floors: high abrasion zones in power plants, metallurgy, chemicals
Protective repair: concrete surfaces exposed to acids, alkalis, seawater and salts
Substrate must be clean, roughened and free from laitance, dust or oil
Mix resin and hardener (3:1 by weight), then add graded aggregates
Apply within 45 min of mixing, compact and trowel finish
Protect surface during curing; full strength after 7 days at 20°C
Supplied in pre-packed sets (resin + hardener )
Shelf life: 12 months in sealed, dry, ventilated storage
Product Documentation
RG – Impact & Corrosion Resistant Epoxy Polymer Mortar
Impact & Corrosion Resistant Epoxy Polymer Mortar | RG Series
