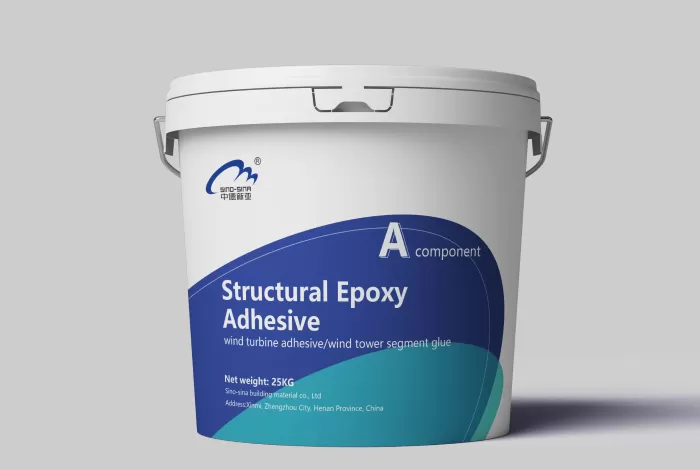

High-performance two-component epoxy adhesive providing rigid bonds for load transfer in wind turbine precast segments and structural applications.
Product Introduction
Our Structural Epoxy Adhesive for Wind Turbine Precast Segments is an advanced two-component epoxy adhesive designed for high-strength bonding of precast concrete segments in wind power hybrid towers, bridges, tunnels, and structural repairs. Element bonding adhesives like this provide a rigid bond between elements to transfer loads effectively, ensuring reliable adhesion approved by CNAS-certified laboratories. This concrete bonding adhesive excels in epoxy for concrete repair, offering superior mechanical strength and durability. Ideal as a wind tower epoxy adhesive for onshore wind turbine assembly, it outperforms in thixotropic epoxy adhesive properties for non-sag performance.
Product Characteristics
◆ Good marina resistance, stronger bonding force in dry condition.
◆ High strength, high elastic modulus, low creep, waterproof and anti-corrosion.
◆ Good operability, special conditions can meet the wet surface and low temperature construction.
◆ High thixotropic paste, self-lubricating effect, easy to mix and apply, no hanging, no dripping.
◆ Easy to compact, no water seepage in adhesive joints, strong bonding ability with concrete, no rusting of steel reinforcement, and can effectively transfer loads.
Product Parameters
| Property | Technical Requirement |
|---|---|
| Physical Properties | |
| Color after curing | Matches segmental concrete surface |
| Non-volatile content | ≥99% |
| Shrinkage | ≤0.1% |
| Curing Behavior | |
| Sizing time | ≥20 minutes |
| Bonding time | ≥60 minutes |
| Anti-sagging performance | ≥10 mm |
| Extrudability (150N/2000N/4000N) | ≥3000 mm / ≥7500 mm / ≥10000 mm |
| Mechanical Strength | |
| Compressive strength (12h/24h/7d) | ≥20 MPa / ≥60 MPa / ≥80 MPa |
| Steel-to-steel tensile shear | ≥17 MPa |
| Concrete-to-concrete compressive shear | ≥14 MPa |
| Normal tensile bond (steel-to-concrete) | ≥3.0 MPa (concrete failure) |
| Durability | |
| Thermal deformation temp. | ≥50°C |
| Water absorption | ≤0.5% |
| Freeze-thaw resistance | Concrete body failure |
| Fatigue stress resistance | No damage after 2 million cycles |
| Salt spray resistance | Pass |
Product Usage
Mix Components A and B per ratio in clean container until uniform.
Apply to precast segment surfaces within sizing time for rigid bond.
Supports moisture-tolerant application in varied conditions as epoxy bonding agent.
Use for precast assembly in wind turbine towers, bridges, tunnels, and repairs.
Ideal for segmental bridge adhesive and hybrid wind power towers needing load transfer.
Ensures quick curing for minimal downtime in infrastructure projects.
Finished product is AB two-component package, A component is 9kg/barrel, B component is 3kg/barrel; (special requirements can be customized)
Unopened products are stored in a dry and cool environment at 5~30℃, the shelf life of the product is 12 months.
