Professional steel bonding adhesive for high-strength reinforcement of steel plates to concrete.
Product Introduction
JGN801 steel structure adhesive is a versatile two-component modified epoxy resin designed for bonding steel to concrete, masonry, or wood in various environments. It comes in normal temperature, low-temperature (-10°C), and humidity-resistant types to handle diverse job site challenges. JGN803 Steel Jacketing Adhesive is specialized for fixing and potting steel plates, perfect for high-strength bonding in bridges, buildings, and repairs. Both offer excellent thixotropy, no segregation, and strong resistance to aging, acids, alkalis, and impacts. Environmentally safe with no volatile solvents.
Product Parameters
Category I Grade A Adhesive of GB50278-2011 Technical Code for Safety Appraisal of Engineering Structural Strengthening Materials
Performance item | Performance requirement | ||
Colloidal Performance | Tensile strength (MPa) | ≥30 | |
Tensile elastic modulus (MPa) | JGN801 steel structure adhesive | ≥3.2×103 | |
JGN803 Steel Jacketing Adhesive | ≥2.5×103 | ||
Elongation (%) | ≥1.2 | ||
Flexural strength (MPa) | ≥45 | ||
And it cannot be cracked. | |||
Compressive strength (MPa) | ≥65 | ||
Adhesion performance | Standard value of Steel-steel tensile shear strength (MPa) | ≥15 | |
Steel-steel bond tensile strength (MPa) | ≥33 | ||
Steel-steel T impact stripping length (mm) | ≤25 | ||
Positive tensile bond strength of steel-C45 concrete (MPa) | ≥2.5, and it is a cohesive failure of concrete. | ||
Non-volatile content (solid content) (%) | ≥99 | ||
Product Usage
Applications:
Bonding and strengthening concrete, masonry, or wood elements to steel plates.
Installing curtain walls, marble, granite, ceramic tiles, and more.
Repairing and bonding surfaces of concrete and steel components.
Wet-clad steel plate reinforcement for concrete, bridges, and large-area structures.
Construction Process:
Clean the substrate surface: Grind to remove scum and loose layers, expose fresh surface, blow off dust with an air compressor, and wipe with acetone.
Derust the steel plate: Use sandblasting, emery cloth, or wire brush until metallic luster appears.
Mix the adhesive: By weight ratio A:B=3:1, measure and stir thoroughly until uniform.
Apply: Recommended dosage 5-7 Kg/m²; thixotropic formula prevents flow, ideal for vertical or overhead use.
Features for Use: Available in types for normal, low-temperature (-10°C), or humid/water-resistant curing. Ensures high operability, shock resistance, and media resistance (acid, alkali, salt). Safe, non-toxic, and solvent-free.
Packaging and storage
Packed in plastic drum; component A: 9Kg/drum, component B: 3Kg/drum;
Shelf life: 12 months.
Product Documentation

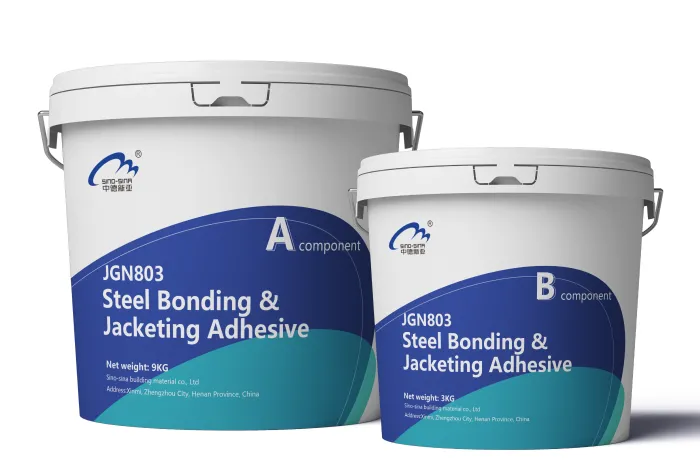

Steel Bonding & Jacketing Adhesive
JGN801/JGN803 Steel Bonding & Jacketing Adhesive: Two-component epoxy structural adhesive for bonding steel to concrete, offering high strength in harsh conditions.
