High-performance flexible thin spray liner for coal mine roadway reinforcement and underground construction safety.
Product Introduction
T2305 Flexible Thin Spray Liner is engineered to meet the requirements of T/CCS 075-2023 for coal mine roadway reinforcement. Applied by spraying, it forms a durable, flexible, and fire-resistant coating that delivers reliable surface support, crack resistance, and anti-corrosion performance.
The material ensures excellent performance in demanding underground conditions, providing both early strength and long-term durability. It is widely used in coal mines, underground tunnels, and industrial construction where safety and stability are critical.
Summary Benefits at a Glance：
High Flexibility – Elongation at break ≥10%, adapts to ground movement.
Reliable Strength – Tensile strength ≥1.5 MPa; bonding ≥1.5 MPa.
Fire & Anti-Static – Complies with MT/T 113-1995 for safety in coal mines.
Quick Setting – Surface dry in 60 minutes, fully dry within 8 hours.
Product Parameters
| Property | Reguirement |
| Maximum Exothermic Temperature (°C) | ≤ 40 |
| Surface Drying Time (min) | 60 |
| Hard Drying Time (h) | 8 |
| Tensile Strength (MPa) | ≥ 1.5 |
| Elongation at Break (%) | ≥ 10 |
| Bonding Strength (MPa) | ≥ 1.5 |
| Fire Resistance | Complies with MT/T 113-1995 |
| Surface Resistivity (Ω) | Complies with MT/T 113-1995 |
| Corrosion Resistance (15 d) | No corrosion |

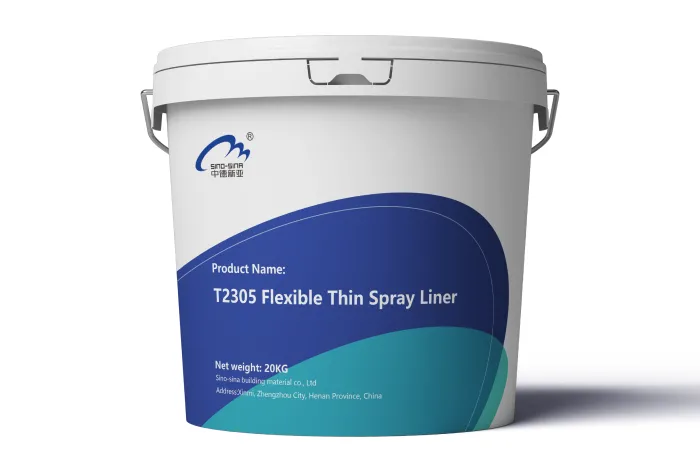

Packaging: 20kg plastic buckets; Shelf Life: 12 months in dry, ventilated storage.
Product Usage
Mixing – Prepare material as per technical instructions to ensure uniform consistency.
Spraying – Apply using standard spraying equipment in thin, even layers.
Curing – Surface dries in ~60 minutes, complete drying in 8 hours.
Safety – Ensure ventilation in underground conditions and use protective equipment.
