Hot Melt Epoxy Resin Adhesive E400 is a two-component elastic bonding agent that melts under heat for secondary curing, ensuring tight waterproof bonds between STC concrete and asphalt layers in steel bridge decks.
Summary Benefits at a Glance:
High Ductility & Flexibility: >400% elongation at 20°C for crack-resistant performance in variable temperatures.Waterproof & Corrosion Protection: Impermeable barrier prevents water erosion on steel structures.
Strong Adhesion: Bonding strength >5 MPa to STC, ideal for bridge pavement and repairs.
Easy Application with Secondary Curing: Melts during hot asphalt paving for embedded aggregate and enhanced durability.
Product Introduction
Hot Melt Epoxy Resin Adhesive E400 is a specialized two-component (resin and curing agent) bonding agent tailored for construction applications in highway bridges and steel structures. Unlike traditional epoxies, it undergoes initial room-temperature curing followed by heat-induced melting and secondary curing when hot asphalt is applied. This process allows large aggregate particles to embed into the molten layer under paving pressure, creating a highly elastic, waterproof bond between asphalt concrete and the bridge deck. Composed of modified epoxy resin, it excels in environments with thermal stress, offering excellent ductility, temperature resistance from -10°C to 60°C, and protection against moisture erosion. Perfect for new builds, repaving, or renovations, E400 ensures structural integrity and longevity in demanding infrastructure projects.
Product Parameters
| Parameter | Value/Description | Test Method/Notes |
| Mixing Ratio | Resin (A) : Curing Agent (B) = 100:90 by mass | Optimal for uniform blending |
| Surface Dry Time | 24 hours at 20°C | Ensures quick initial set |
| Full Curing Time | 6-10 days at 20°C | Allows for complete strength development |
| Bonding Strength (to STC) | >5 MPa at 20°C; >1.5 MPa at 60°C | ASTM D-4541/ACI-503R; Superior adhesion for waterproofing |
| Tensile Strength | >3 MPa at 20°C; >5 MPa at -10°C | ASTM D638-82; High performance in cold conditions |
| Elongation | >400% at 20°C; >250% at -10°C | ASTM D638-82; Excellent ductility for flexible bonding |
| Composite Shear Strength | 3.5 MPa at 20°C; 1.5 MPa at 60°C | JGJ/T 55-2011 & DB32/T 2285-2012 A10; Durable under shear stress |
| Composite Pull-Off Strength | 3.0 MPa at 20°C; 1.0 MPa at 60°C | JGJ/T 55-2011 & DB32/T 2285-2012 A11; Reliable pull resistance |
| Adhesion Pull-Off Strength | ≥2.5 MPa at 20°C; ≥1.0 MPa at 60°C | JGJ/T 55-2011 & DB32/T 2285-2012 A12; Strong interface bonding |
| Recommended Temperature | 5°C to 35°C for application | Avoids viscosity issues or rapid reaction |
Product Usage
Hot Melt Epoxy Resin Adhesive E400 is primarily used as a waterproof bonding layer in steel bridge deck systems for highway construction, repaving, and renovation projects. Follow these steps for optimal results:
Surface Preparation: Clean the substrate (e.g., STC concrete or steel) to remove oil, moisture, dust, and contaminants. If a corrosion layer exists, apply after it cures; otherwise, proceed within 4 hours post-sandblasting.
Mixing: Blend Component A (resin) and B (curing agent) at 100:90 mass ratio using a power mixer until uniform. Apply within pot life to avoid waste.
Application: Use manual scraping, rolling, or mechanical spraying for even coating (1-2 mm thickness). Apply in two layers to prevent defects. For slopes, touch up any flow issues. Protect areas from splatter and avoid wind >10 m/s.
Optional Enhancement: Broadcast compliant gravel on the uncured layer for better traction; remove loose particles after curing.
Curing & Integration: Allow initial curing at room temperature. During hot asphalt paving, the adhesive melts for secondary curing, embedding aggregates for a tight bond.
Post-Application: Provide sufficient curing time (6-10 days); test on-site before proceeding. Ideal for crack repairs, asphalt-concrete bonding, and preventing water erosion in bridges.

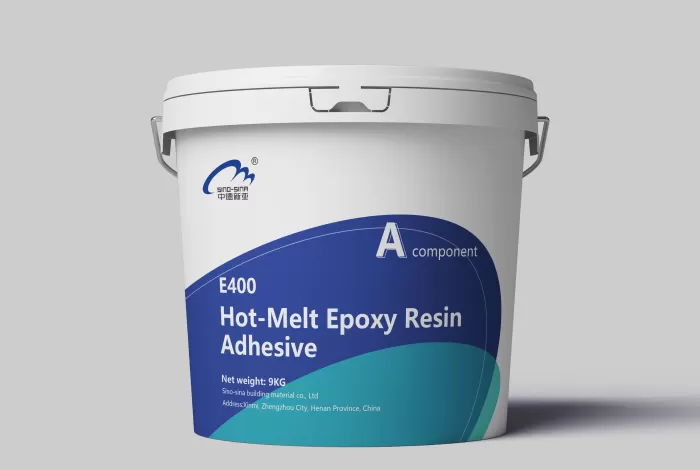

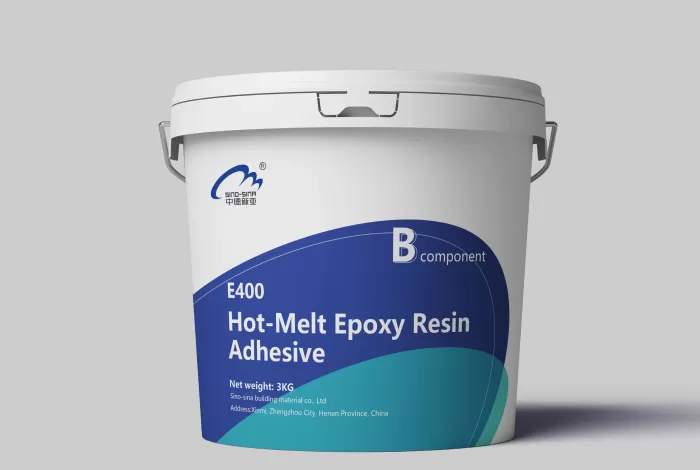

Finished product is AB two-component package, A component is 9kg/barrel, B component is 3kg/barrel; (special requirements can be customized)
Unopened products are stored in a dry and cool environment at 5~30℃, the shelf life of the product is 12 months.
