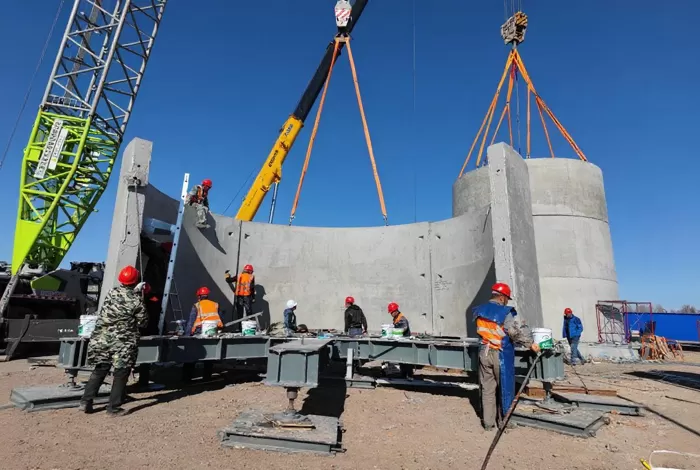

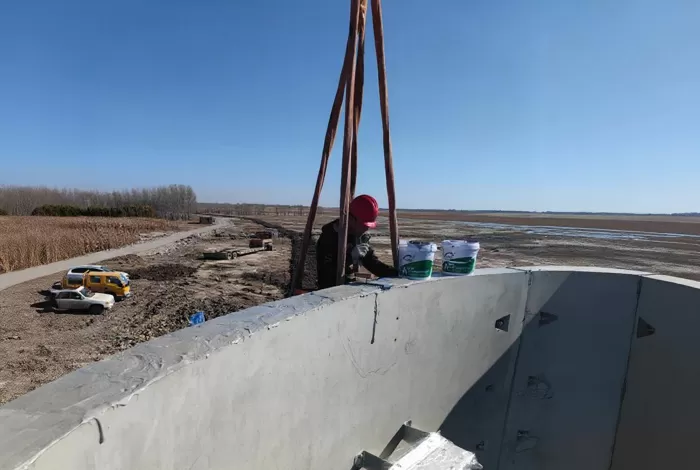

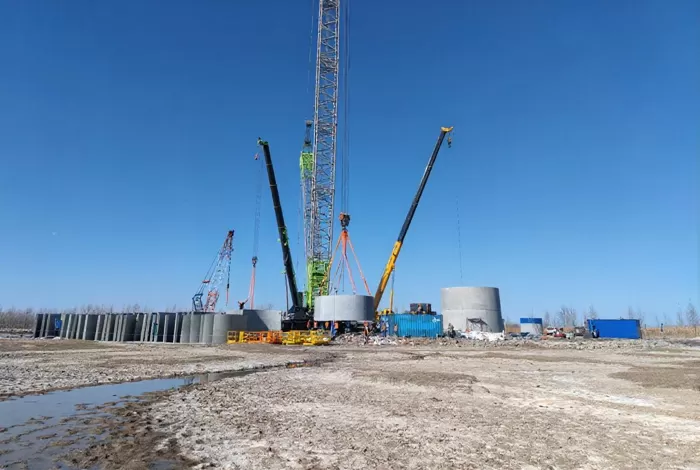

FD800-Epoxy Structural Adhesive is a high-performance, two-component system designed for vertical and horizontal splicing of precast concrete segments in onshore hybrid wind turbine towers. It offers strong, weather-resistant bonding with excellent thixotropy for vertical application and high compressive and shear strength for post-tensioned assemblies.
Product Introduction
Epoxy Structural Adhesive is a high-strength, weather-resistant bonding agent designed for splicing precast concrete segments in hybrid wind turbine towers. This epoxy structural adhesive offers excellent thixotropy for vertical application and delivers durable performance under stress, moisture, and temperature variation
Product Parameters
| Property | Result |
|---|---|
| Appearance | Paste, concrete color after curing |
| Mixing Ratio | A:B = 3:1 (by weight) |
| Pot Life | ≥ 20 minutes |
| Open Time | ≥ 60 minutes |
| Anti-Sag Performance | ≥ 104 mm |
| Extrudability (150N/2000N/4000N) | ≥3000 / ≥7500 / ≥10000 mm² |
| Water Absorption | ≤ 0.5% |
| Heat Resistance | ≥ 50°C |
| Non-Volatile Content | ≥ 99% |
| Compressive Strength | ≥ 60 MPa @ 24h, ≥ 80 MPa @ 7d |
| Tensile Shear (Steel-Steel) | ≥ 17 MPa |
| Pull-off Strength (Steel-Concrete) | ≥ 3.0 MPa (concrete failure) |
| Chemical Resistance | Excellent (acid, alkali, salt spray) |
| Fatigue Resistance | Pass (2 million cycles) |
| Elastic Modulus | ≥8000 MPa (initial), ≥6000 MPa (long-term) |
