EGM is a seamless epoxy self-leveling system delivering stable anti-static performance and non-sparking safety with high chemical and abrasion resistance.
Summary Benefits at a Glance
Stable ESD control – surface/volume resistivity 10^5–10^8 Ω
Non-sparking safety – suitable for hazardous and static-sensitive areas
Durable surface – abrasion, impact, oil and chemical resistance
Seamless finish – dense, glossy, dust-free, easy to clean
Product Introduction
EGM Epoxy Anti-Static Self-Leveling Coating forms a smooth, glossy and conductive floor for environments that demand non-sparking safety and reliable ESD control. The system bonds strongly to concrete, resists abrasion and chemicals, and maintains stable resistivity over time. Typical uses include electronics and micro-electronics manufacturing, telecom and precision instrument plants, pharmaceutical and defense facilities, and large clean rooms.
Product Parameters
| Test Item | Unit | Result |
|---|---|---|
| Adhesion strength | Grade | 1 |
| Pencil hardness | H | ≥ 2 |
| Abrasion resistance (750 g / 500 r) | g | ≤ 0.03 |
| Impact resistance | Kg·cm | Pass at 40 |
| Flexibility | mm | Pass at 3 |
| Water resistance | — | No change after 48 h |
| Acid resistance (10% H2SO4) | — | No change after 56 d |
| Alkali resistance (10% NaOH) | — | No change after 56 d |
| Oil resistance | — | No change after 56 d |
| Surface resistivity | Ω | 10^5 – 10^8 |
| Volume resistivity | Ω | 10^5 – 10^8 |
Product Usage
Substrate preparation
Concrete must be sound, dry and clean; grind and vacuum to remove laitance and dust.
Repair cracks/voids; verify moisture content is within spec.
Application steps
Primer – Apply conductive epoxy primer to improve adhesion.
Copper tape network – Install as per ESD design.
Conductive intermediate layer – Roll/brush/squeegee for uniform conductivity.
Self-leveling coat – Mix per TDS; pour and trowel for even self-leveling finish.
Curing – Protect from moisture, dust and sunlight; allow proper cure before service.
Commissioning & maintenance
Verify ESD performance and grounding continuity before handover.
Use neutral detergents; avoid strong alkali/solvent cleaning in early stage.
Packaging & Shelf Life
20 kg sets; shelf life 12 months (dry, ventilated storage)
Product Documentation

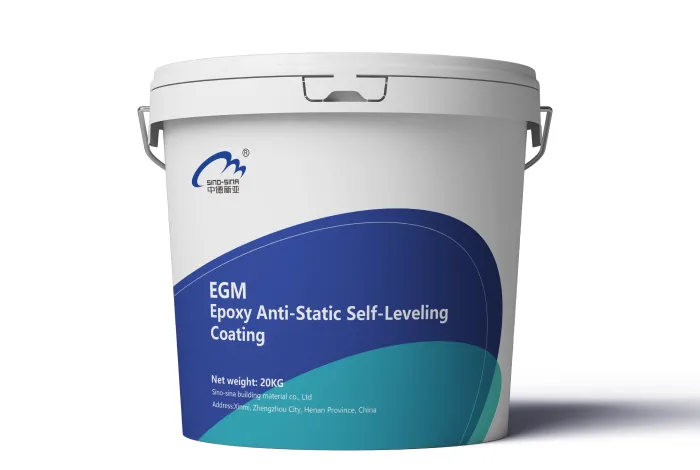

EGM – Epoxy Anti-Static Self-Leveling Coating
