JGN807 is a robust two-component epoxy adhesive designed for bonding CFRP strips to concrete in demanding dynamic load settings.
Product Introduction
When it comes to concrete strengthening with carbon fiber strip reinforcement, JGN807 delivers unmatched performance as a high thixotropy epoxy adhesive. Imagine tackling bridge repairs or seismic upgrades where vibrations are constant— this structural reinforcement adhesive holds firm, boosting load capacity without the hassle of sagging or rework. Its fast-curing formula speeds up projects, while resistance to moisture and temperature swings keeps bonds intact for years.
Product Parameters
Inspection ltem | Unit | Performance requirements |
| Tensile strength | Mpa | ≥35 |
| Tensile elastic modulus | Mpa | ≥3.5x103 |
| Elongation | % | ≥1.5 |
| Bending strength | Mpa | ≥50, and no brittle (cracked) damage |
| Compressive strength | Mpa | ≥70 |
| Standard value of Steel-steel tensile shear strength | Mpa | ≥18 |
| Steel-steel T impact stripping length | mm | ≤10 |
| Steel-steel butt bond tensile strength | Mpa | ≥40 |
| Tensile bond strength with concrete | Mpa | ≥2.5, and it is a cohesive failure of concrete. |
| Non-volatile content | % | ≥99 |
| Decrease rate of Steel-steel tensile shear strength after damping, heating and aging for 90 days | % | ≤10% |
| Decrease rate of Steel-steel tensile shear strength after 50 times of freeze-thaw cycles | % | ≤10% |
Product Usage
JGN807 excels in structural reinforcement by bonding CFRP strips to concrete, particularly where vibrations or dynamic loads are common. Its formulation ensures quick strength buildup and reliable adhesion without environmental interference. Use it for bridges, buildings, or any concrete elements needing enhanced durability against fatigue and impacts.
Start with surface prep: Grind away dirt, grease, or loose material from concrete until it's solid and even, then clean with a vacuum or acetone. Mix components A and B thoroughly. Spread 4-5mm of adhesive on the concrete, add 1-2mm on the CFRP strip (thicker in the center for at least 2mm gap). Press the strip into place and roll it firmly to squeeze out excess resin, ensuring no voids. For multiple strips, keep 5mm gaps. Clean up edges and avoid dragging unprotected CFRP.
Product Documentation

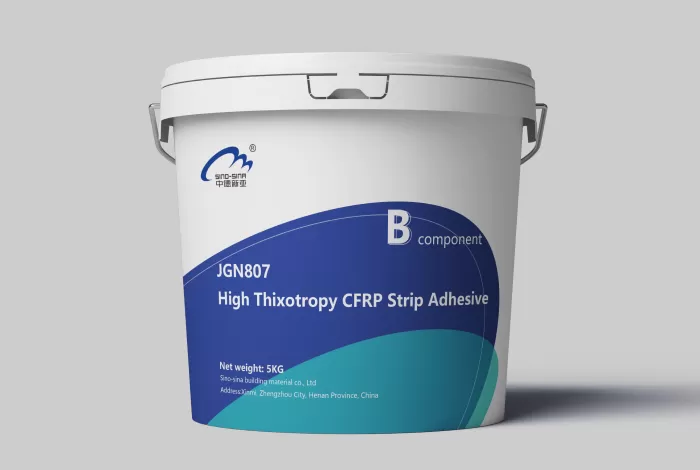

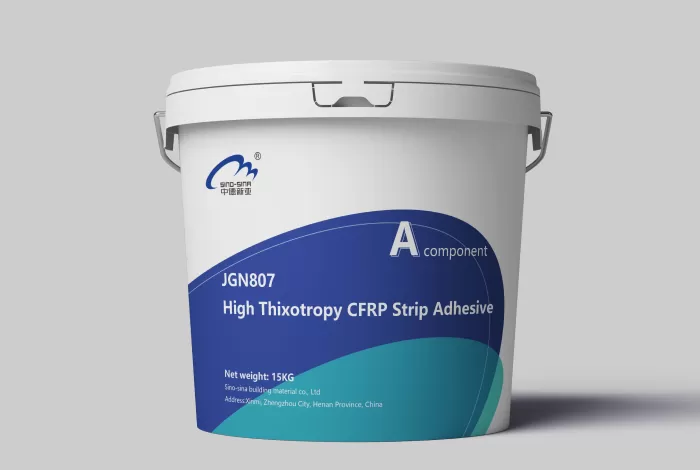

JGN807 High Thixotropy CFRP strip adhesive
A two-component modified epoxy adhesive-bonding the strip to concrete
