Looking for reliable structural reinforcement? Our carbon fiber strips deliver top-tier strengthening for concrete and more.
Boosts tensile strength to over 2400MPa for Grade I performance.
High straightness under 1/1000 curvature for optimal load transfer.
Versatile specs with over 20 sizes to fit any project need.
Eco-friendly and tested for safety, perfect for quick installations.
Product Introduction

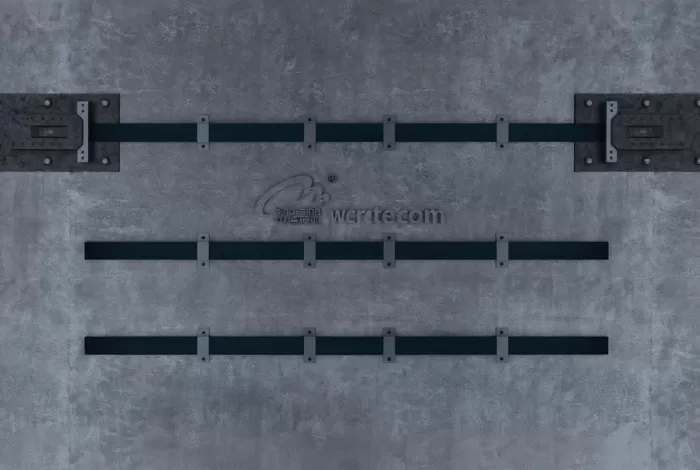

The carbon fiber board was molded with 12K carbon fiber and epoxy resin via pultrusion, carbon fiber board strength. Its elongation rate (above 1.6%) and many other indicators far exceed the requirements of the national standard, and meet the requirements of high-strength grade I carbon fiber board. The straightness is high (below 1‰ of camber), which is conducive to load transmission and has a good strengthening effect.
◆ Flexural strengthening of concrete beams and slabs.
◆ Seismic retrofitting of buildings.
◆ Reinforcement of masonry walls.
◆ Crack control in bridge decks and parking structures.
◆ Timber structure reinforcement
◆High strength grade I: All performance indexes meet the requirement of high strength grade I carbon fiber board.
◆High straightness: After forming, it is straight and smooth, the curvature is less than one thousandth, and the strength of carbon fiber is fully exerted.
◆Various specifications: More than 20 kinds of carbon plate specifications, which can meet different reinforcement needs
◆Wide carbon plate: The substrate has low leveling requirements, high strength, and can be as wide as the beam, with good reinforcement effect and fast construction efficiency.
◆Random inspection:The product has Passed safety appraisal, environment-friendly and non-toxic testing and other stringent tests, and random inspections and type inspections can be conducted.
Q:Is your carbon fiber board 100% real carbon fiber?
A:Yes, we offer 100% genuine carbon fiber boards, made from T300/T700 carbon fabric and epoxy resin.
We do not use fake carbon vinyls or fiberglass-core imitations. Full material specifications and test reports are available on request.
Q: What sizes and thicknesses do you offer?
A: Thicknesses: 1.2mm, 1.4mm
Sheet sizes: 200×300 mm, 400×500 mm, 500×600 mm, 1000×1000 mm, or custom
Finish: Matte / Glossy, Plain / Twill Weave
Custom-cut panels and holes can be made to your exact specifications.
Product Parameters
Performance Items | Material Grade | Performance Indexes | Performance Items | Material Grade | Performance Indexes |
Tensile strength | Grade I | ≥2400MPa | Fiber volume content | Grade I | ≥65% |
Grade II | ≥2000MPa | Grade II | ≥55% | ||
Elastic Modulus | Grade I | ≥160GPa | Shear strength between layers | Grade I | ≥50GPa |
Grade II | ≥140GPa | Grade II | ≥40MPa | ||
Elongation | Grade I | ≥1.6% | |||
Grade II | ≥1.4% | ||||
Positive tension bonding strength between fiber composite material and base material | For concrete and masonry substrates: ≥2.5MPa, and it is the cohesive failure of the substrate; for steel substrates: ≥3.5MPa, and it must not be adhesion failure | ||||
Pass the test of resistance to damp and heat aging; pass the long-term stress resistance test | |||||
Refer to the test report for material design strength indexes. | |||||
Reference: GB 50728-2011 Technical Code for Safety Appraisal of Engineering Structural Strengthening Materials GB 50550-2010 Code for Acceptance of Construction Quality of Strengthening Building Structure GB 50367-2013 Code for Design of Strengthening Concrete Structure | |||||
Product Usage
Position and mark the reinforcement areas on the structure.
Prepare the concrete surface by cleaning, grinding, and removing loose material.
Repair any uneven spots using leveling adhesive for a smooth base.
Mix carbon board adhesive and apply evenly to the strip.
Bond the carbon fiber strip firmly to the surface for full contact.
Use temporary supports to hold it in place while the adhesive cures.
Apply sealant for added surface protection and longevity. Great for beams, columns, and walls to enhance load-bearing without heavy modifications.
