ZRETE Bidirectional carbon fiber fabric with epoxy adhesive system designed for concrete structural strengthening.
Superior tensile and elastic modulus for maximum reinforcement performance
High flexural and interlayer shear strength with epoxy adhesive composite
Seismic Retrofitting & Crack Repair
Lightweight, corrosion-resistant, easy to install on site
Proven durability for bridges, buildings, tunnels, and seismic retrofit projects
Product Introduction

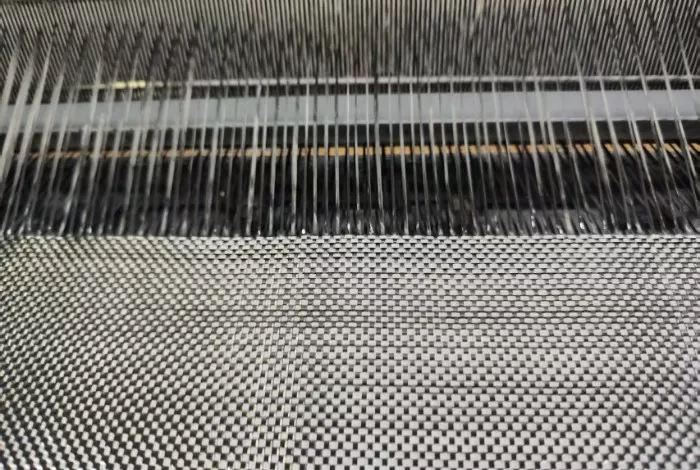

ZRETE bidirectional carbon fiber fabric is a high-performance CFRP material designed for structural strengthening of concrete members. With fibers oriented in both warp and weft directions, the fabric provides balanced reinforcement against tensile and shear stresses. When combined with structural epoxy adhesive, the CFRP system significantly improves flexural strength, crack resistance, and seismic performance of reinforced concrete elements. It is lightweight, easy to apply on site, and delivers excellent durability in harsh environments such as marine structures, bridges, and tunnels.
Balanced bidirectional reinforcement, superior to unidirectional systems in multi-directional stress conditions
Excellent adhesion with ZRETE structural epoxy adhesive for reliable composite performance
Lightweight, easy to transport and install without heavy equipment
Proven field performance in bridges, tunnels, marine projects, and seismic retrofits
Supported by technical expertise, CNAS-certified testing, and global project references
Product Parameters
| Test Item | Value (Dry Fabric) | Value (CFRP Laminate with Epoxy) |
|---|---|---|
| Tensile Strength | 5500 MPa | ≥ 3400 MPa |
| Elastic Modulus | 290 GPa | ≥ 2.3×10⁵ MPa |
| Elongation at Break | 1.8 % | ≥ 1.6 % |
| Density | 1.79 g/cm³ | — |
| Linear Density | 450g/km | — |
| Flexural Strength | — | ≥ 700 MPa |
| Interlayer Shear Strength | — | ≥ 45 MPa |
Product Usage
Strengthening of concrete beams, slabs, columns, and walls
Seismic retrofit of bridges, tunnels, and high-rise structures
Flexural and shear reinforcement of infrastructure components
Long-term durability with fatigue resistance and corrosion protection
FAQ
Q1: What is the advantage of bidirectional over unidirectional fabric?
A1: Bidirectional fabric reinforces in both directions, improving shear and multidirectional load resistance, while unidirectional is optimized for tensile strength in one direction.
Q2: Can this fabric be used in marine or humid environments?
A2: Yes. Combined with epoxy adhesive, the CFRP system offers excellent corrosion resistance, making it suitable for coastal, marine, and underground structures.
Q3: How is the installation process performed?
A3: Surfaces are cleaned and primed, epoxy adhesive is applied, then the carbon fiber fabric is laid, impregnated, and cured. The system is lightweight and easy to handle on site.
Q4: What certifications support this product?
A4: ZRETE CFRP systems are tested in accordance with international standards, with mechanical properties verified by CNAS-certified laboratories.
