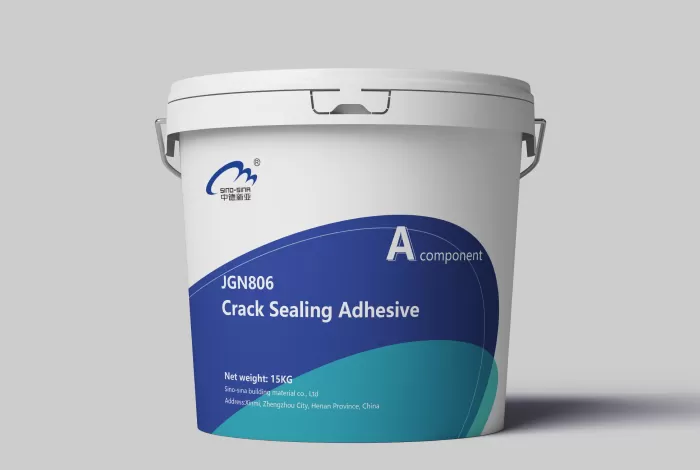

JGN806 is a dependable two-component epoxy adhesive designed for sealing concrete cracks and handling surface repairs in tough conditions.
Product Introduction
For anyone dealing with concrete crack repair or structural strengthening, JGN806 epoxy resin adhesive simplifies the process with its user-friendly mix and application. Picture sealing deep pits or leveling uneven spots before adding reinforcements— this crack sealing adhesive sticks reliably, even in humid settings, cutting down on prep time and ensuring a solid base. Its anti-corrosion properties add extra protection for long-term durability in bridges or buildings.
Product Parameters
Performance | Test items | Test items | Technical requirements |
Physical properties | Verticality, mm | Applicable temperature | ≤2.0 |
| Applicable period (operabletime), min | Applicable temperature | ≥35 | |
| Density, g/cm3 | A+ | - | |
| Tensile strength, MPa | 23+2°C,7 days | ≥30 | |
| Tensile elastic modulus，GPa | 23+2°C,7 days | ≥3.2 | |
| Elongation, % | 23+2°C,7 days | ≥1.2 | |
| Tensile bending strength, MPa | 23+2°C,7 days | ≥45 | |
| Compressive strength, MPa | 23+2°C,7 days | ≥65 | |
Colloidal capacity | Standard value of steel-steeltensile shear strength, MPa | 23+2°C,7 days | ≥15 |
| Steel-concrete positive tensilebond strength, MPa | 23+2°C,7 days | ≥2.5, and it is a cohesive failure of concrete. | |
| Non-volatile content (solid content),% | 105+2°C | ≥99 | |
Product Usage
JGN806 works great for patching up concrete surface issues like pits and cracks, prepping areas for carbon fiber or steel reinforcement, and adding protective layers against corrosion on bridges or buildings. It also seals cracks effectively and can decorate or protect concrete exteriors, performing best on clean, dry surfaces but holding up on damp ones too.
Mix A and B in a clean container per the ratio until uniform—use a knife for small batches or a mixer for larger ones. For protection jobs, grind the concrete to expose aggregates and scrape on 2-5mm thick. When repairing defects, chisel out loose parts first, then layer as needed; thin with a bit of primer if desired. For sealing cracks, cut grooves if necessary before filling. It sets strong in 12-24 hours at 25°C, ideal for quick turnarounds.
Folks in construction often pick JGN806 because it handles real-site challenges like uneven surfaces or slight moisture without losing grip. Plus, its concrete-like color means repairs blend right in, avoiding that patched-up look on visible areas.
Packaging:
Component A: 15kg/drum
Component B: 5kg/drum
Shelf Life: 12 months
Product Documentation
JGN806 Crack sealing Adhesive
JGN806 is a dependable two-component epoxy adhesive built for sealing concrete cracks and handling surface repairs in tough conditions.
