Sino-Sina Carbon Fiber Wrap for High Strength Reinforcement of Concrete and Composite Materials
Keywords:
Carbon Fiber Fabric
CFRP Sheet
Concrete Reinforcement Fabric
Product Introduction
Sino-Sina Carbon Fiber Wrap is a unidirectional carbon fiber reinforcement product, woven with imported carbon fiber yarn. Available in two thicknesses: 0.111mm (200g) and 0.167mm (300g). Various widths: 100mm, 150mm, 200mm, 300mm, 500mm and other widths required for other projects.
Used for tensile, shear and seismic reinforcement of structural components, the material needs to be used together with our company's matching JGN802 modified epoxy resin carbon fiber adhesive to become carbon fiber composite material, which can constitute a complete, high-performance carbon fiber cloth sheet reinforcement system.
Carbon Fiber Wrap is suitable for dealing with the increase in the use of building loads, change in the use of engineering functions, aging of materials, concrete strength level lower than the design value, structural cracks, harsh environment service components repair, protection of the reinforcement project, as well as sporting goods, industrial products, and other areas of the components of the reinforcement.
Tensile Strength: 4,900 MPa (vs. 500 MPa for steel rebar)
Weight: Only 200-300 g/m² (80% lighter than steel mesh)
Elastic Modulus: 230 GPa for optimal load distribution
5x Stronger Than Steel
Corrosion-Proof & Lightweight
No Heavy Equipment – Cut with scissors, bond with epoxy
Zero Corrosion – Ideal for marine environments (saltwater resistant)
50+ Year Lifespan – No maintenance required
Labor Savings: Install 3x faster than steel rebar
Bridge Columns: Seismic retrofitting
Parking Garages: Stop spalling from de-icing salts
Tunnel Linings: Prevent cracks under ground pressure
Cracked Beams: 1-layer = adding 2 steel rebars
Historic Structures: Invisible reinforcement
Composite Layup: Fuselage panels, drone frames
Race Car Parts: Hoods, spoilers
Q:How does carbon fiber compare to steel rebar?
A: 5x stronger by weight, never rusts, and installs without heavy machinery.
Q:Can I apply it to wet surfaces?
A: Yes! Use our JGN802 modified epoxy resin carbon fiber adhesivefor damp concrete .
Q:What’s the shelf life?
A: 2 years in original packaging (store at 15-25°C).
Product Parameters

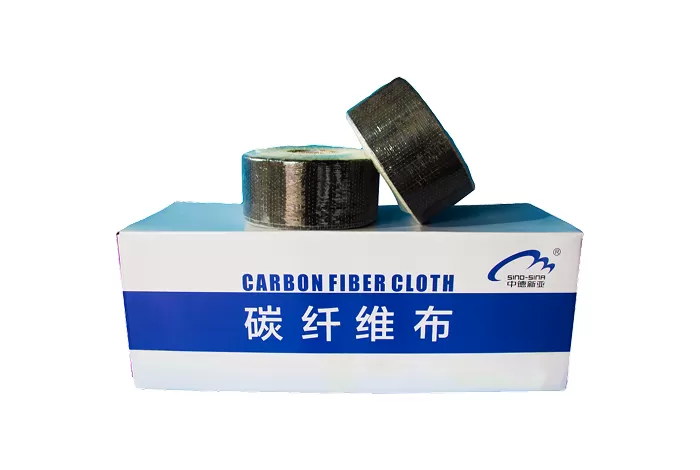

Boxed, regular width:10cm, 20cm; length:10m/roll. It should be kept in a cool and dry environment, avoiding sunlight.
